Ascent Bikes

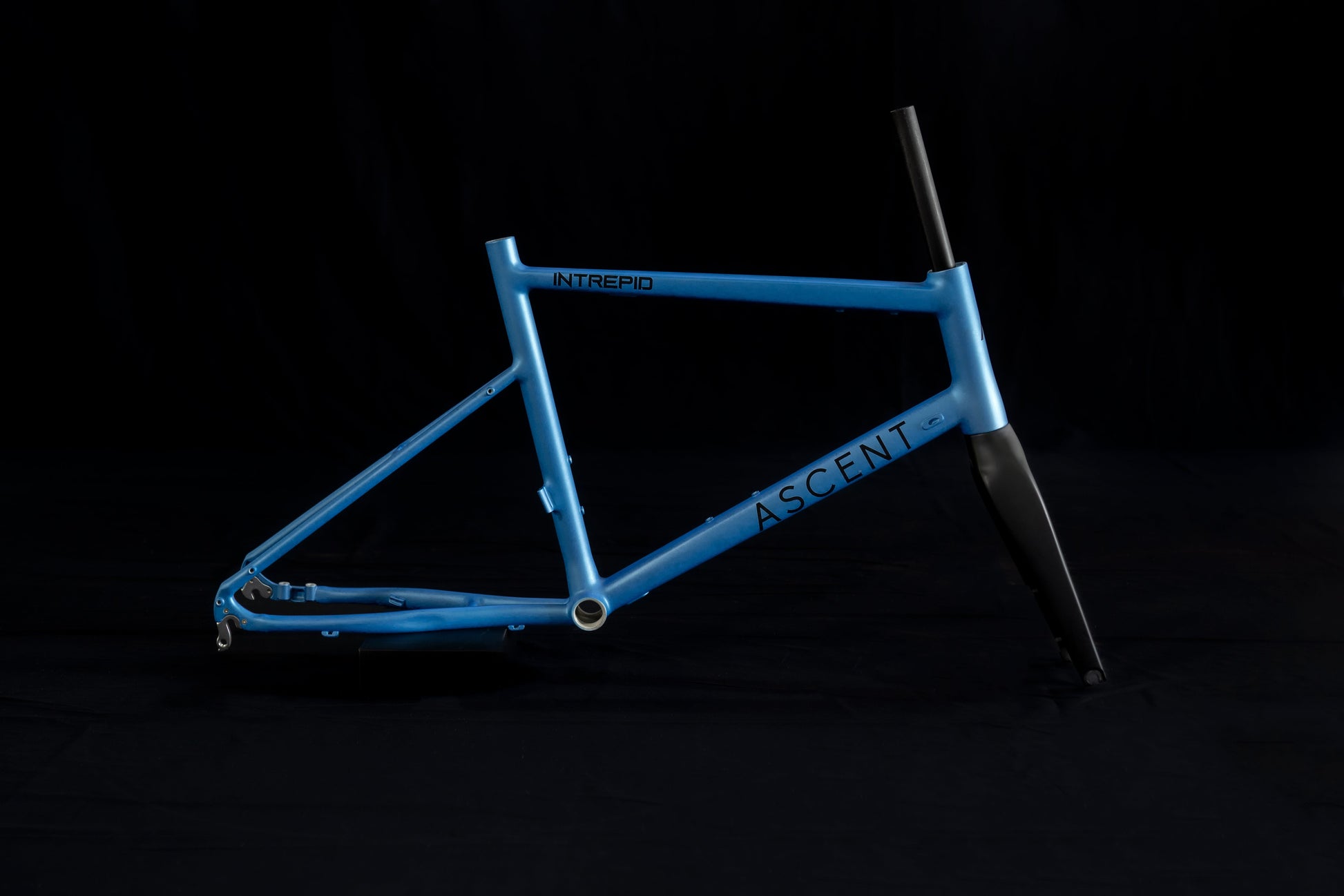

Intrepid Frameset

Intrepid Frameset

$899.00 SGD
$899.00 SGD
Sale Sold out

Description

We designed the Intrepid to compete with the best - a mini velo that would perform both on-and-off road. A mini velo that would raise the bar and shatter your expectations of what small wheels can do.



MAXIMUM PERFORMANCE

We designed the Intrepid to bring road bike-level performance to the Mini Velo scene. From hydroformed triple-butted tubing, to stiffness-enhancing features like a tapered head tube and a flared seat tube, the Intrepid delivers responsiveness and confidence in spades.



ULTIMATE VERSATILITY

From caliper to disc brakes, narrow to wide tires, the Intrepid allows you to build it the way you like it. With Flat-Mount disc brakes for compatibility with the latest Road Disc groupsets, to clearance for massive 2.3" tires, the Intrepid is as capable on gravel as it is on the road and pavement.

So, where will you be going next?

PROVIDED WITH FRAMESET:

Frame x1
Fork x1
Headset x1
Compression Plug x1
15cm Carbon Spacer x1
Seatpost Clamp x1

FRAME SPECIFICATIONS:

Frame weight: 1480g (approx)
Fork weight: 500g (approx)

FRAME GEOMETRY

Head Tube Angle: 72 degrees
Seat Tube Angle: 73 degrees
Head Tube Length: 200mm
Seat Tube Length: 460mm
Chainstay: 425mm
Top Tube Length: 526mm
Wheelbase: 1019mm
Front Centre Distance: 596mm
Bottom Bracket Rise: 30mm
Reach (assuming full spacer length): 351mm
Stack (assuming full spacer length): 585mm

BUILD COMPATIBILITY

Wheels/Tyres: Up to 58-406 (20x 2.30") or 37-451 (20x1 3/8")​
Dropout width: 100mm (front), 135mm (rear)
Brakes: Caliper or Disc (Flat Mount)
Bottom Bracket: BSA Threaded
Chainring: Up to 60T single, >55t Double​
Bars: Flat, Riser, Bullhorn, Drop​
Stem: Any 28.6mm (1-1/8") Steerer
Seatpost: Any 31.6mm​
Fenders: Limited support
Rear rack: Supported
